Description

OVERVIEW

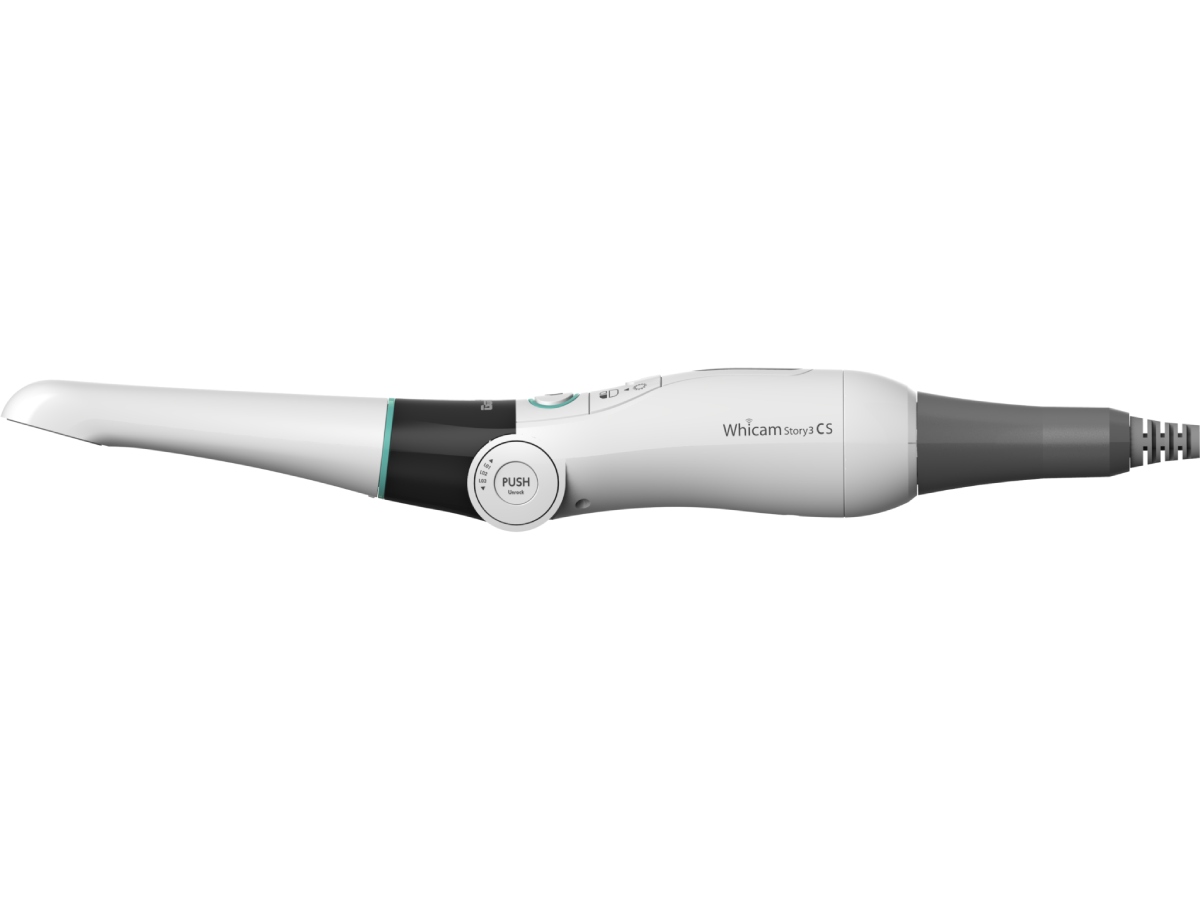

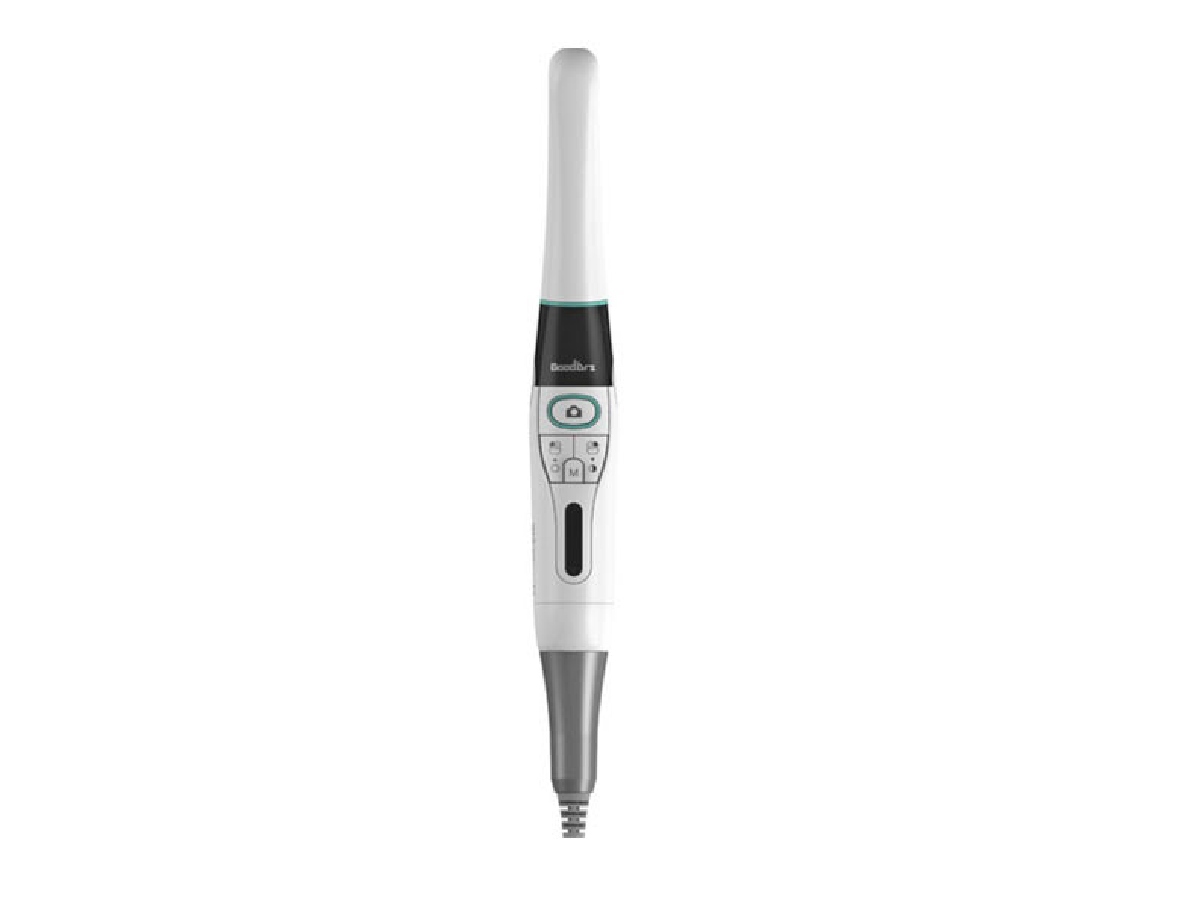

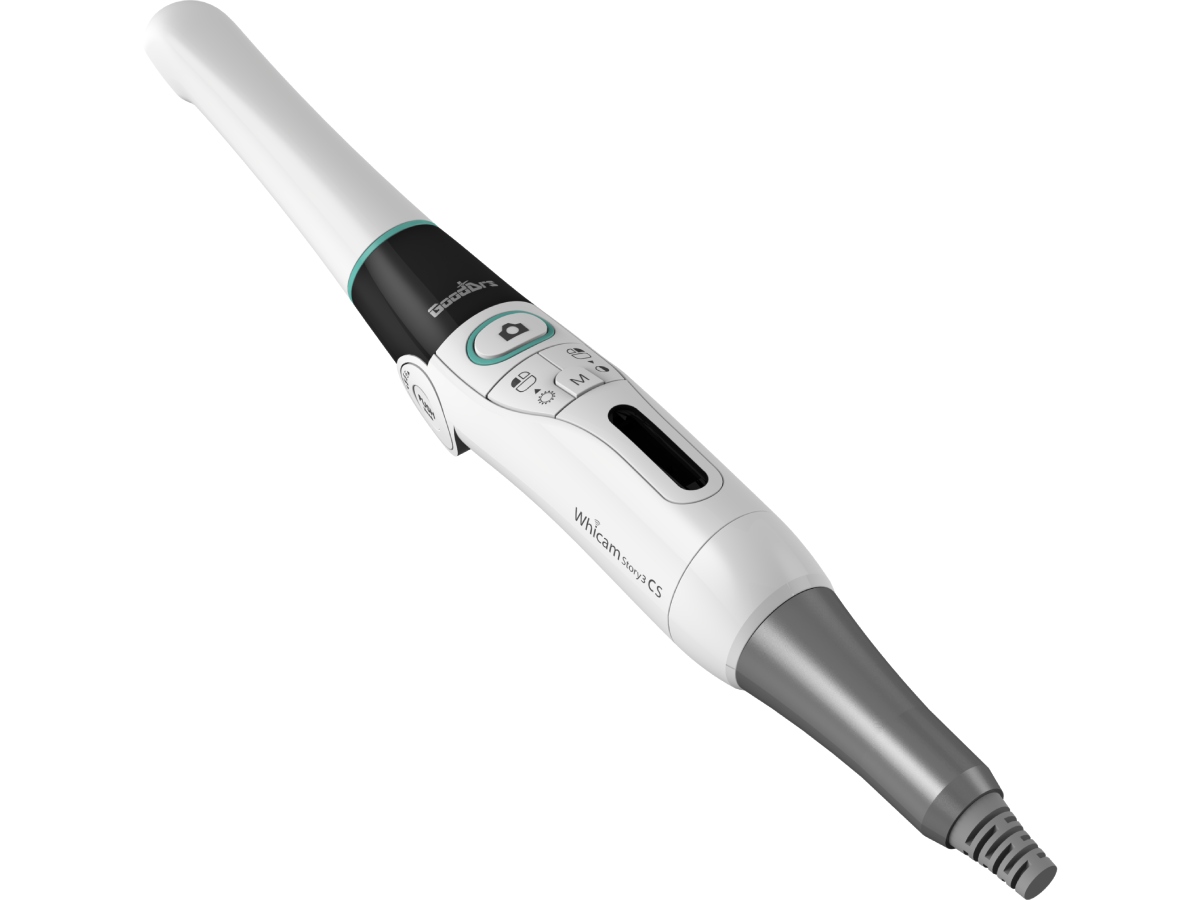

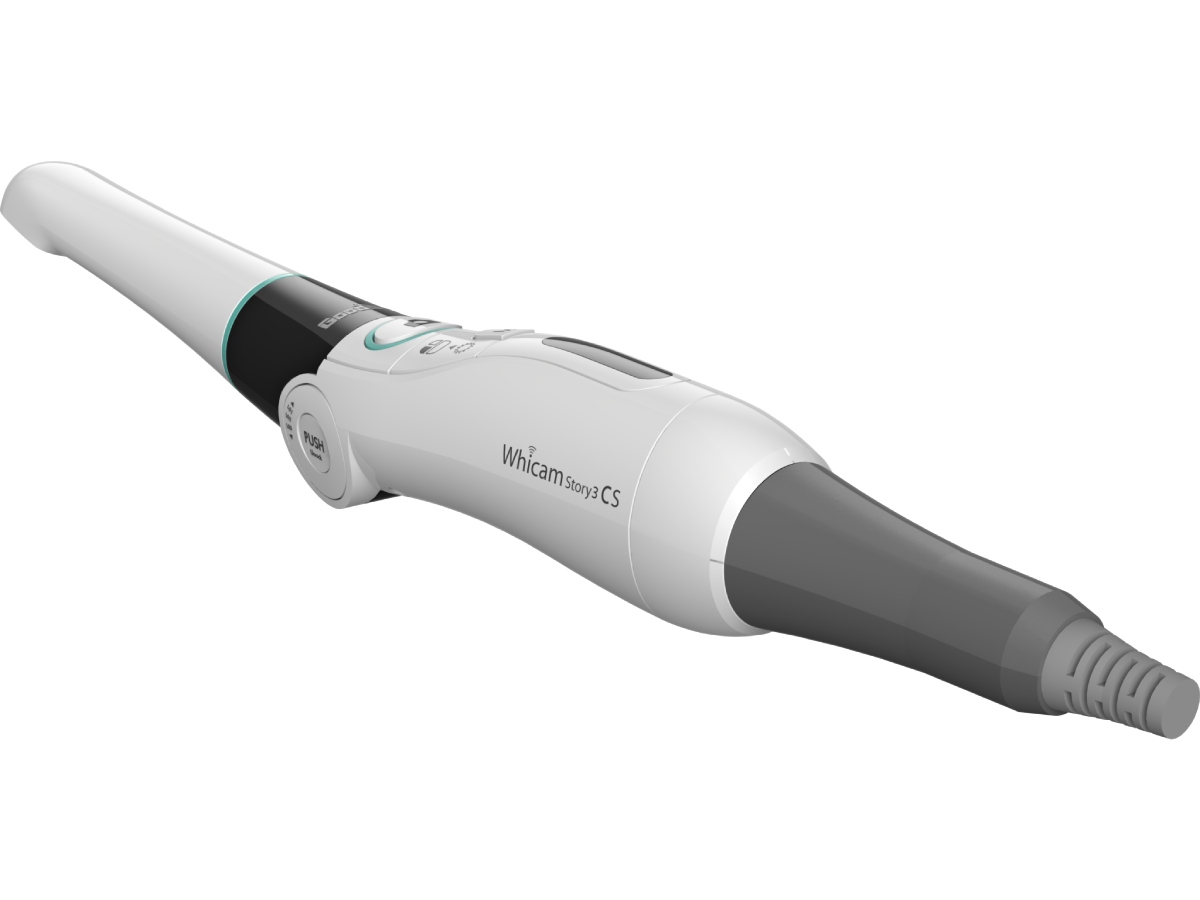

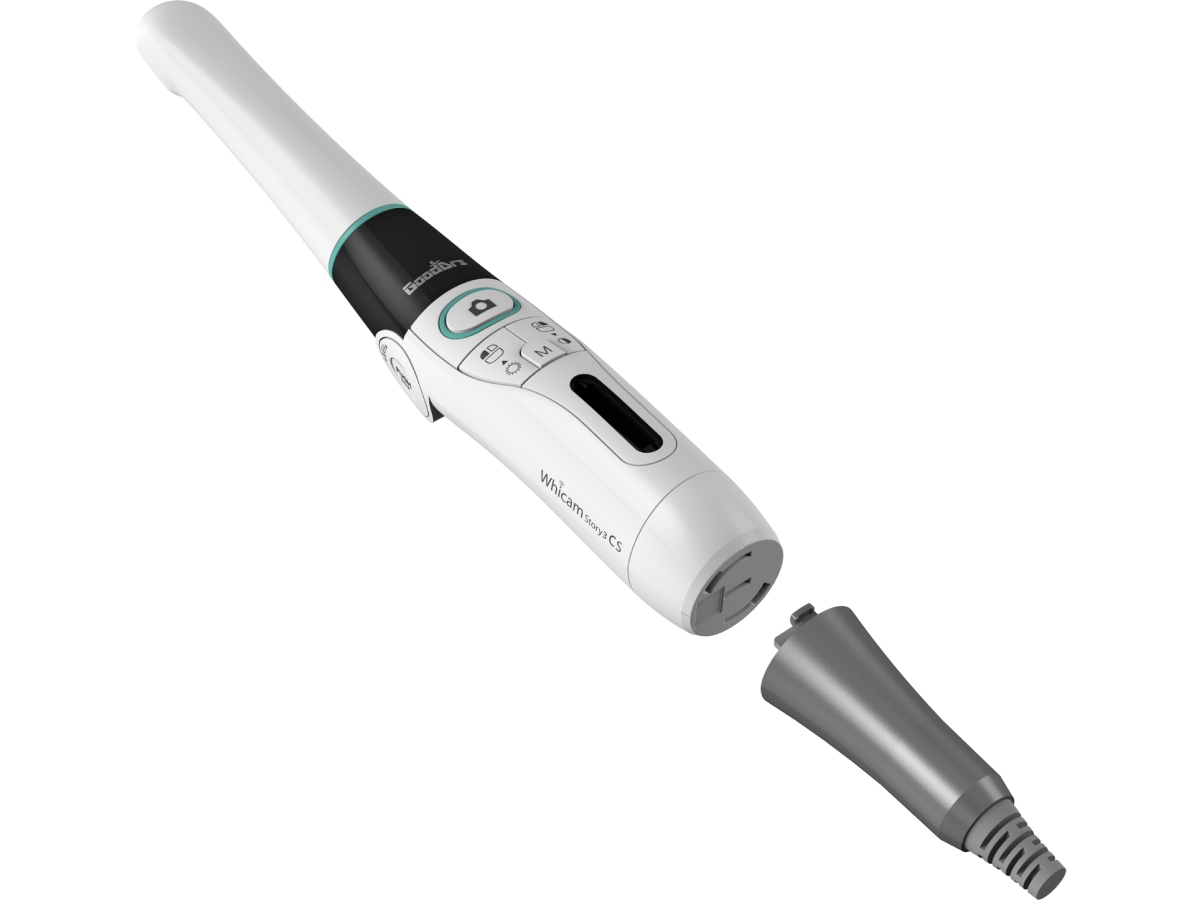

This High Definition Camera (1280 x720) features the most state of the art technology in intraoral cameras today. The camera is available in both wired and wireless options as well. The wireless option uses a high speed digital wireless signal that produces a perfect clear, lag free and interference free image. The wired option uses a USB 2.0 connection direct to the computer for easy plug and play operation.

WhicamStory3-DiscoveryHD-Pro-Wired
Whicam-Story
Whicam-Story-3
Whicam-Story-2

SPECIFICATIONS

A6 Patient Chair (Standard Features)
  • Hydraulic Base and Electromechanical Back Rest
  • Seat Height 13.7” to 29.5” (350 to 750mm)

  • Backrest Reclining Angle -5° to 64°

  • Electronic Deluxe Foot Control: 2 Programmable positions, Auto-Return and Last Position

  • Safety Shut-Off Plate

  • Input Voltage (110v or 220v)

Minimum Computer System Requirements
  • PC System: 2.0 Ghz CPU
  • Operating System: Windows 7 or 8 Windows XP Not HIPAA
  • USB Port: USB 2.0
  • Ram: 4 GB Ram

TECHNICAL SPECIFICATIONS

Camera
Operation Voltage:3.7V
Measurement:Approx. 210 x 31 x 37 mm
Weight:Approx. 75g
Resolution:HD 720p
Sensor/Lens Type:CMOS/Liquid lens
Charger

Measurement:Approx. 110 x105 x 68mm

Weight:Approx. 100g
Operation Voltage:5v
Disposable Cover
Dimensions:Approx. 32 x 100mm
Quantity:Approximately 100 pcs
Raw MaterialPolyethylene

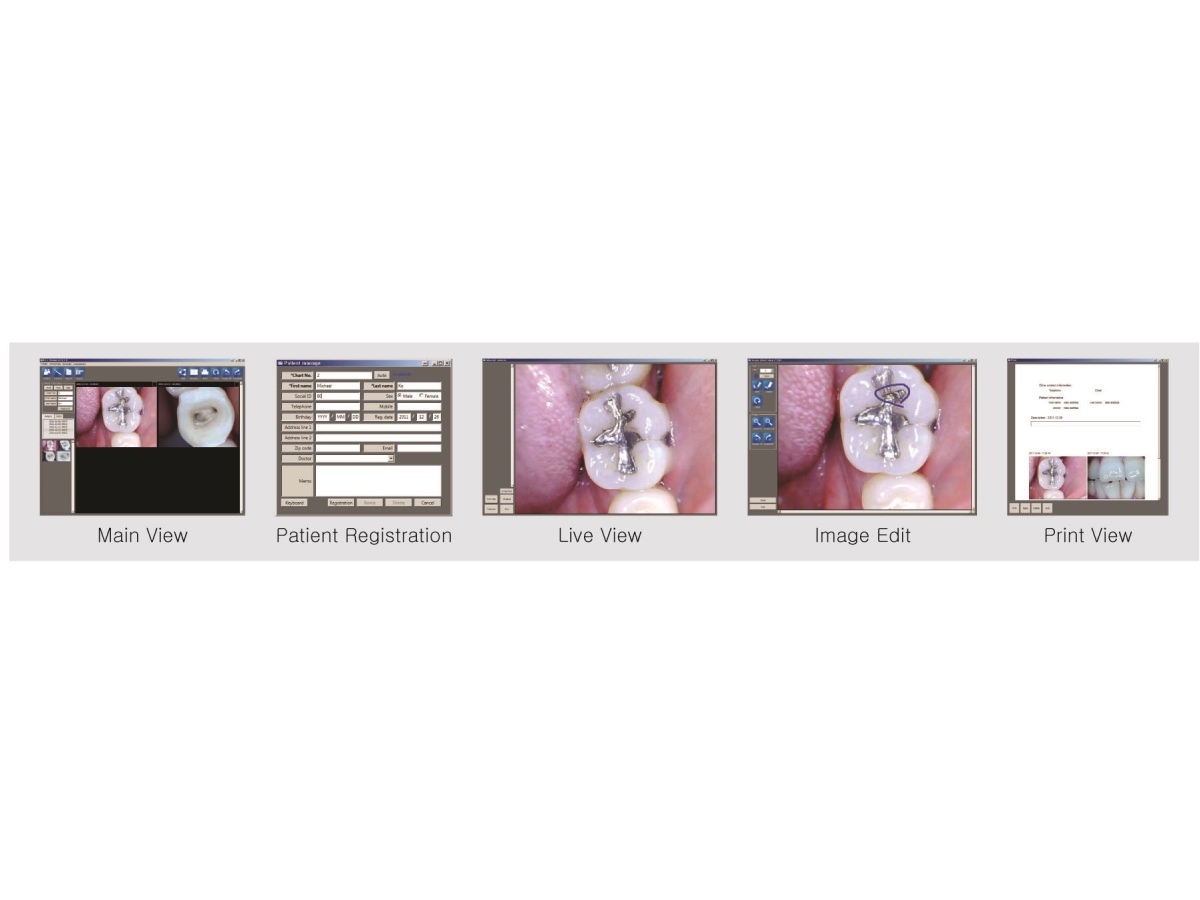

Software

Whicam Story 3 includes its own imaging software. Software allows you to save patients information, save images and edit/modify images. The software is clean and simple to use.

Software
