Description

OVERVIEW

The Flight M415 manual hospital bed/ward bed is built according to International Standard IEC 60601-2-52. It features locking wheels, high quality powder coated steel frame and quick release gas assisted back rest release in under 10 seconds.

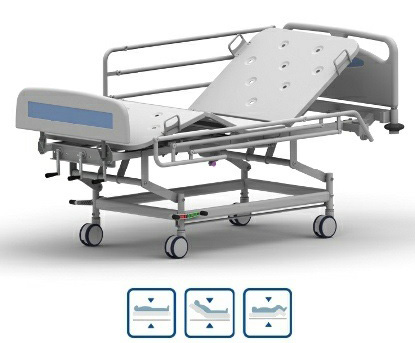

Flight-M410-Bed

SPECIFICATIONS

Dimensions & Adjustment Range
  • Overall Length: 214.5cm
  • Overall Width: 101.0cm
  • Overall Length Foot Panel Extension Down: 247.0cm
  • Bed Extension Length: 32.5cm
  • Mattress Surface Length – Between Panels: 203.0cm
  • Deck Height Range 125mm Twin Castors: 40.0cm to 75.0cm
  • Backrest Angle Adjustment (Mechanical): 0 to 65º

  • Knee Break Angle Adjustment (Mechanical): 0 to 35º (4 Section Bed)
Recommended Mattress Size Dimensions
  • Thickness Max = 17cm & Min = 8cm: W86cm x L198cm
Product Weight (approximate)
  • Without Side Rails Fitted: 115Kg
  • With Side Rails Fitted: 135Kg
  • Safe Working Load (Safety Factor = 2xSWL): 250Kg
M410-Specs-1
M410-Specs-2
